Modulatic® Watertube Steam Generators

modulatic-steam-generators

  • Full Steam in 5 Minutes
  • Fully Modulating Output
  • Compact Size & Weight
  • High Pressure
  • Safe Operation
Steam from: 18 BHP to 220 BHP
(620 to 7,590 PPH)
Pressure from: 15 – 3200 PSIG
Completely Packaged, Fully Tested

Theory of Operation

The Modulatic® Watertube Steam Generator is a once through watertube boiler with a positive displacement pump to provide a constant supply of feedwater. The burner management system controls the amount of feedwater admitted to the coils by regulating the speed of the pump, based on the steam pressure set point compared to the actual reading.

The fuel-air ratio curve changes the amount of fuel and combustion air in direct proportion to the flow of water being sent to the coils. Dry steam is then produced in the steam separator where approximately ninety percent of the water is converted into steam. The water remaining is removed by a steam trap.

Applications

With over 100 years of experience in the industry and thousands of operating units, Vapor Power stands ready to assist with any specific application. Common applications include:

Controls

The Modulatic® Steam Generator is available with the latest in communications and controls technology. Linkageless burner controls and a variable speed positive displacement pump are standard features, allowing for optimal efficiency at all firing rates and long pump life. A variety of PLC and HMI solutions are available and our in-house programming provides customized solutions for every application. Remote data acquisition and control is available via ModBus, Ethernet, Bacnet, or other communication protocol.

Models

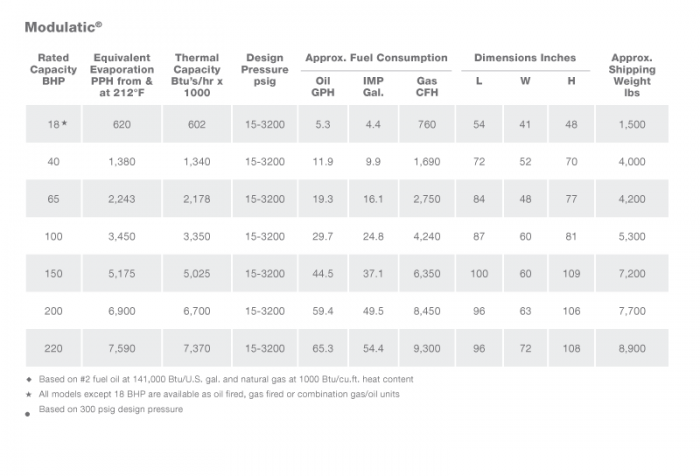

Modulatic-models

Documents

After Market

As one of the industry’s leading manufacturers of boilers, packaged steam generators and thermal fluid heaters, Vapor Power International has everything you need to keep your boilers operating in top condition. That includes complete retrofit upgrade kits to outfit your boilers with the latest in controls and components.
